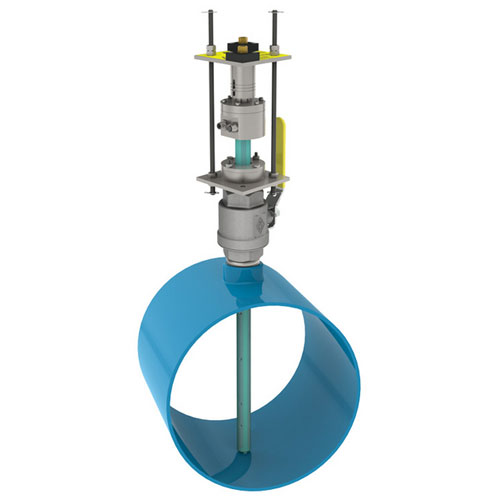

The FPI Mag is an electromagnetic multipoint insertion flowmeter offering high measurement accuracy, even at low velocities and in difficult hydraulic conditions.
Its various electrodes, positioned from top to bottom of the pipe, allow complete velocity profile measurement and thus average flow rate deduction.
This innovative design from McCrometer, acknowledged market leader, is suitable for highly variable flow profiles.
It allows cost-effective, on-site installation without shutting down, emptying or cutting the pipe (hot tap installation), while offering performance comparable to that of a full-bore electromagnetic flowmeter.
The choice of materials, both for the rod and for the electrode sets, makes FPI Mag extremely robust and corrosion resistant.
The FPI Mag is available in both mains and battery-powered versions.
For your projects in Ontario, contact our partner currentinstrument.ca.
Applications
- Sectorization of drinking water networks
- Night-time flow monitoring and leak detection
- Metering and billing
- Transfer of fiber- and material-free raw water, rainwater, and wastewater
- Flow-dependent pressure modulation
- UV dosing
- Industrial applications: process water, washing water, cooling water, chilled water...
- Miscellaneous: irrigation, non-aggressive effluents, underwater applications...
Main benefits

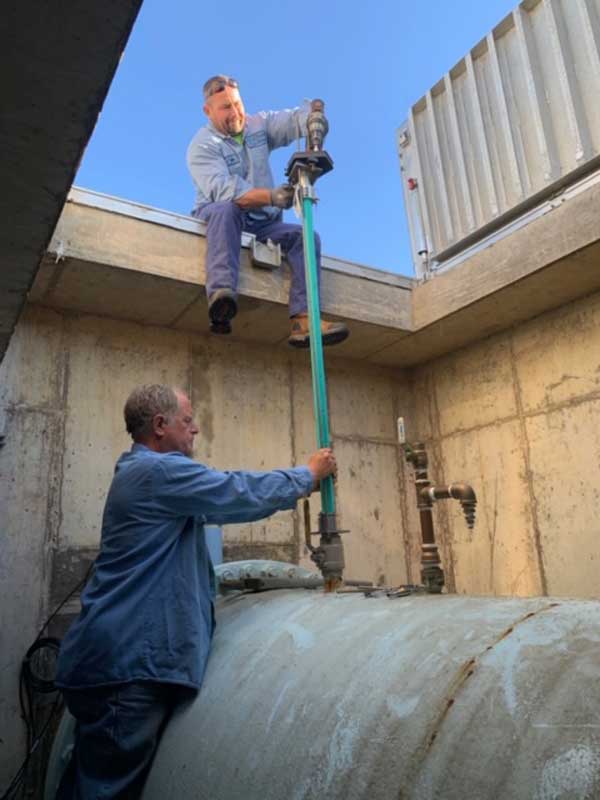

- Pressurized installation and de-installation by simple hot tap without the need to shut down water supply or to carry out civil engineering work
- Temporary installations not required
- High precision, even at low velocities
- Design for short upstream/downstream distances from sources of hydraulic disturbance
- Extremely robust, fully waterproof probes

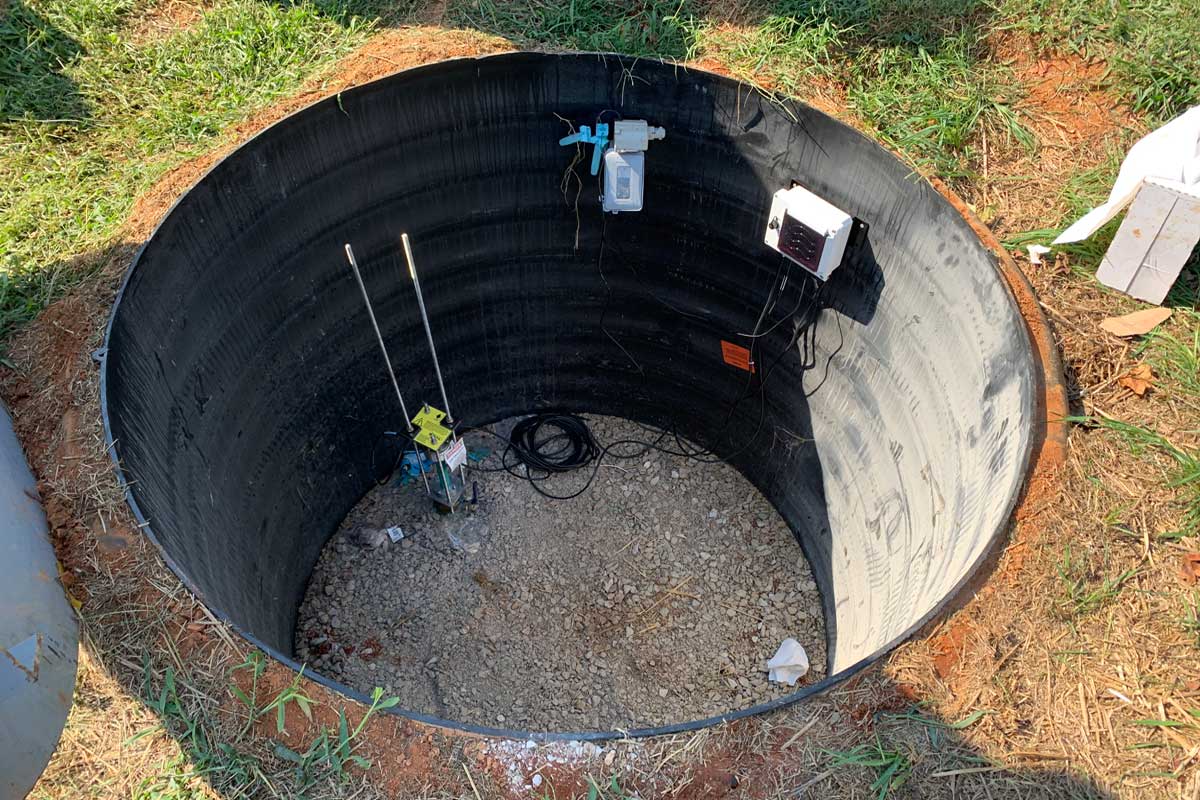

- Can be used on sites with or without power
- UL/CSA certified (unique on the market)
- For use in potentially explosive areas (optional, with Class I/Division 2 certification)
- Numerous connectivity options for PLCs, dataloggers, telemetry/SCADA, AMI networks
- Optional cables with Quick Connect plugs for easy maintenance
Specifications
- Models cover diameters from 100 mm (4'') to 3300 mm (130'')
- Unidirectional and bidirectional versions
- 316 stainless steel probe body with FBE coating
- Stainless steel or (optional) Hastelloy electrodes
- Power supply: 100-240 VAC/45-66 MHz, 12-48 VDC or internal battery (multiyear autonomy)
- Certifications NSF/ANSI 61, UL61010-1, CSA C22.2, Ex Class I/Div 2 (optional)
- IP68 waterproofing (submersible for long periods)
- Velocities +/-10 cm/sec to +/-10 m/sec (lower maximum velocity from DN500 upwards)
- Accuracy: +/-0.5% to +/-1% (depending on flow speed and direction)
- Permissible pressure: up to 250 psi (17 Bar)
- Operating temperature: -10°C/+60°C (Converter: -20°C/+60°C)
- Minimum conductivity: 5 µS/cm
- IP67 remote display-converter
- Outputs (depending on options, with possible combinations):
— 4-20mA, Pulses, Alarms
— Modbus
— Hart
— AMI protocols (Sensus, Neptune, Itron)
Related products
- Easy-to-use special installation tool (McCrometer design)
- Internal diameter gauges (see Gauges section)
- Ball valves and nipples in 316 stainless steel (supplied with the FPI Mag)
- PLCs, dataloggers, telemetry systems (see our offer on this site)
- Stand-alone power supply systems (consult us)
