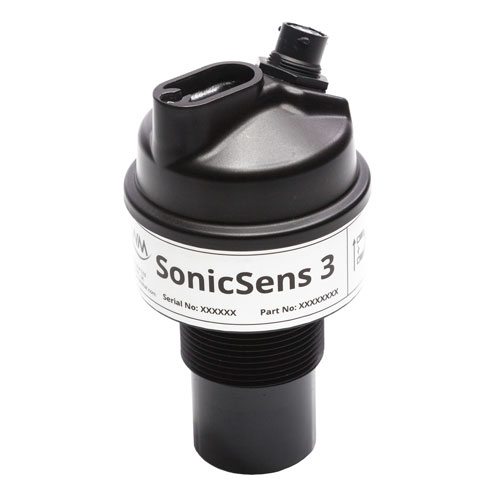

SonicSens 3

Intrinsically Safe Ultrasonic Level Sensor

The SonicSens 3 is an intrinsically safe level sensor with advanced signal processing capabilities.

Using ultrasonic technology, the SonicSens 3 avoids contact with the fluid, reduces contamination and maintenance requirements.

Energy efficient and compatible with multiple HWM telemetry data loggers, the SonicSens 3 is the ideal solution for remote and difficult installations.

Applications

The capabilities of the SonicSens 3 sensor make it the ideal sensor for many applications, including:

  • monitoring levels and overflow in sewer networks
  • flowmetry by open flumes (Parshall, Venturi...)
  • monitoring of reservoir levels and capacities
  • flow monitoring in natural environments (combined with a velocity sensor)

Deploying SonicSens 3 in complex, powerless sites is made possible by advanced "unwanted echo" filtering capabilities, as well as the ability to use long-lasting battery power.

Main benefits

  • Intelligent digital sensor, compatible with HWM telemetry data loggers, benefitting from the latest alarm, reporting and dial-in features
  • Filtering of unwanted echoes (ladder bars...)
  • Reliable: the data logger will send an alarm if measurements are not possible
  • Flexible: four self-adjustable measuring ranges available
  • Long battery life: up to 5 years for the most common applications
  • Simple installation: several predefined software options, including automatic level/rate conversions
  • Fully waterproof: the device is IP68 classified
  • Certification for use in potentially explosive areas (Class I/Zone 0)

Specifications

  • Four self-adjusting ranges: 150 mm/1 m, 200 mm/3 m, 300 mm/6 m, 300 mm/10 m
  • Accuracy in air: ±5 mm to ±9 mm, depending on range
  • Resolution 1 mm (1/25")
  • Integrated temperature compensation
  • Beam angle: 10o to -3 dB at edge
  • Filtering unwanted echoes
  • ATEX/IECEx certification Class I/Zone 0 level
  • PVDF housing, 316 stainless steel brackets
  • Built-in spirit level for easy positioning
  • Dimensions: 145 H x 78 D (mm)
  • Mass: 700 g
  • Submersible (IP68)
  • Operating Temperature: - 20 to + 60 oC (- 5 to +140 oF)
  • Power supply via the data logger, via internal or external batteries or via site power supply

Related products

  • Various mounting brackets, fixed or removable
  • Protective and guiding accessories
  • HWM Data Loggers

Documents



Related pages

Illustrations

SonicSens 3
SonicSens 3
SonicSens 3 - Accessory

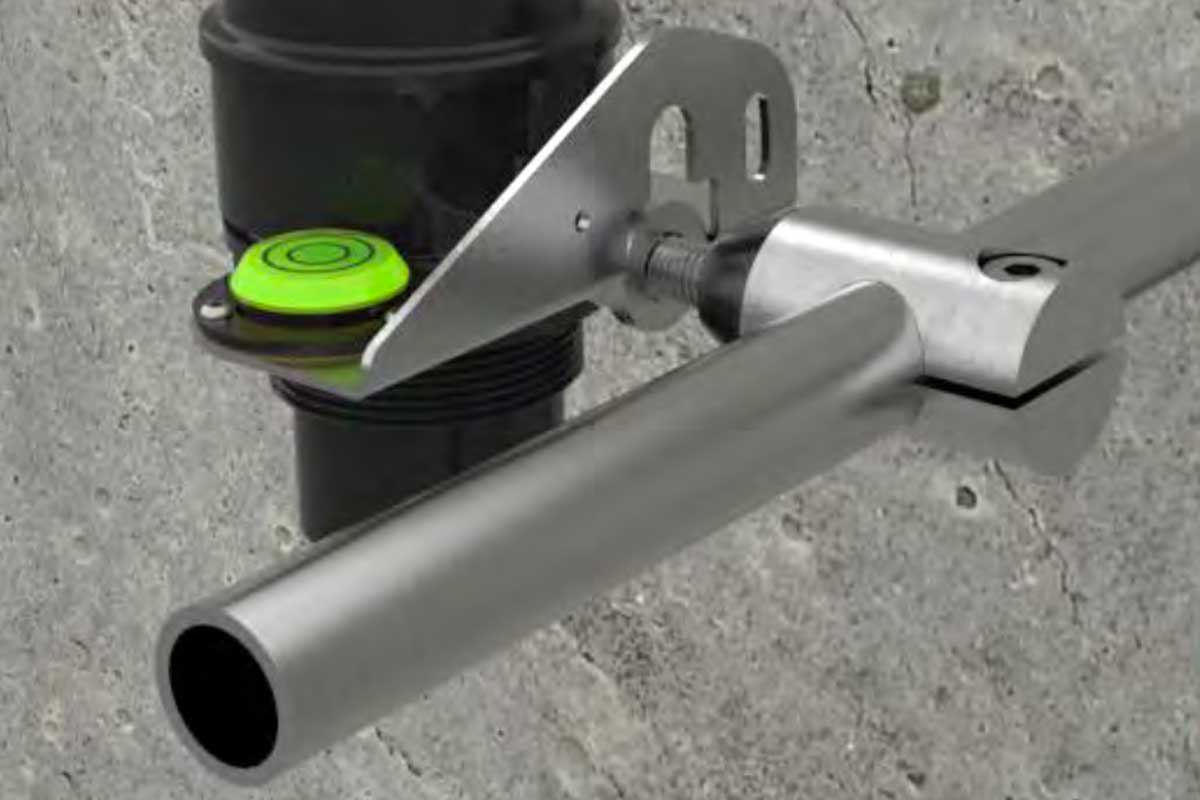

SonicSens 3 - Installation #1
