NivuFlow 600

Flow measurement in full pipes with clean to slightly polluted fluids

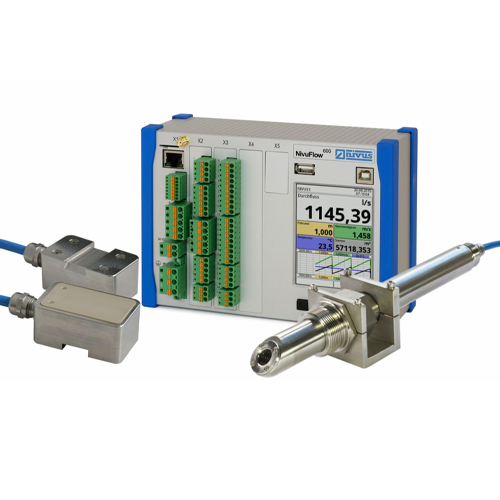

The NivuFlow 600 has been specially developed for flow measurement in full pipes, whether for drinking water, industrial water or treated wastewater. The complete measurement system includes the NF600 transmitter and a range of associated sensors, providing the optimum solution for every application.

The measurement principle of the NivuFlow 600 is based on the acquisition of the transit time of ultrasonic signals between two sensors (velocity path). From the measured velocities, the NivuFlow 600 calculates and instantly displays on its transmitter the average flow velocity and flow rate of the analyzed pipe section, and offers extended diagnostic functions for a more in-depth analysis.

The possibility offered by the NivuFlow 600 of using several pairs of sensors simultaneously on one or more pipes provides great flexibility and ensures optimum accuracy, even under difficult hydraulic conditions.

Multiple communication and connection options, with secure protocols, give a great flexibility to integrate these flowmeters into control systems (PLCs, SCADA, etc.)

But the NivuFlow 600 can also be used as a stand-alone unit, for local operation and with an optional telemetry.

A battery-powered version, the NivuFlow Mobile 600, is also available, for sites without a power supply or for mobile measurement campaigns (portable, waterproof equipment).

Applications

Some typical NivuFlow 600 applications:

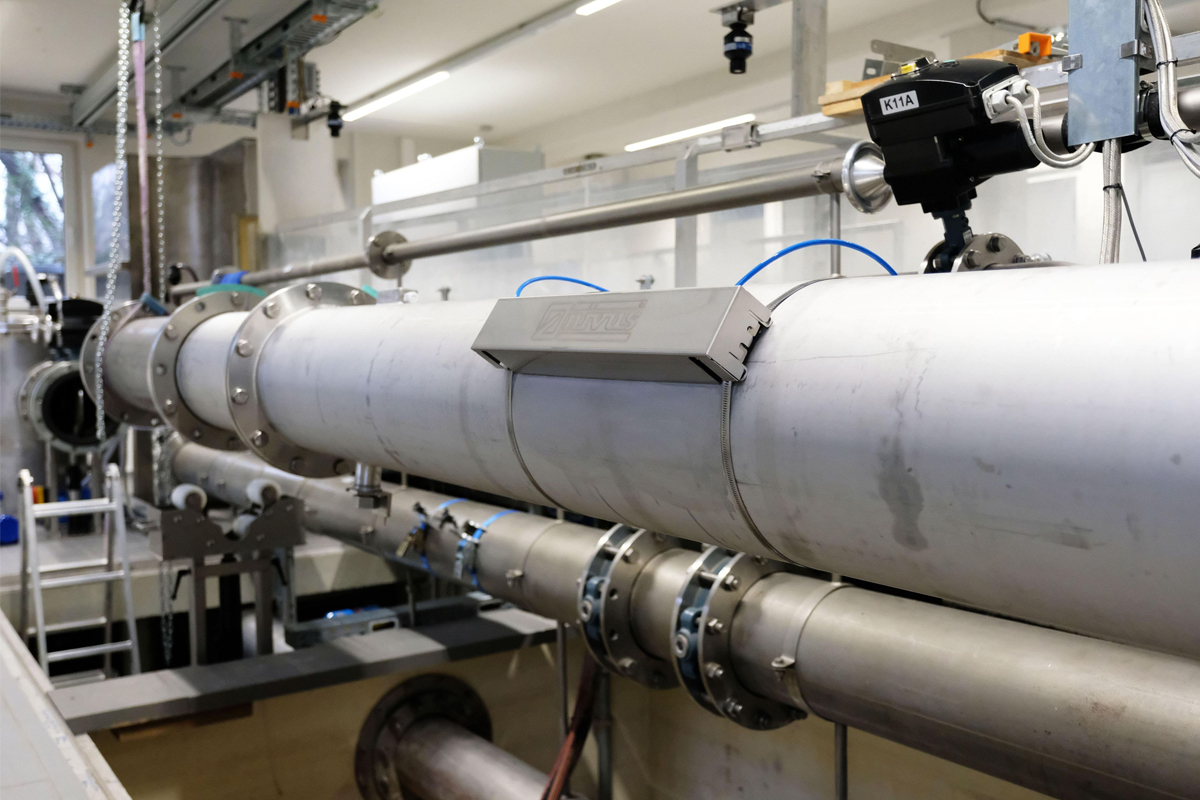

Stationary measures for clear and lightly polluted water pipes
Monitoring pipeline ruptures
Network sectorization (DMA), leak detection
Pumping tests on boreholes
Irrigation systems
Sludge recirculation systems
Cooling water inlets, outlets or circuits
Industry: process and industrial water...

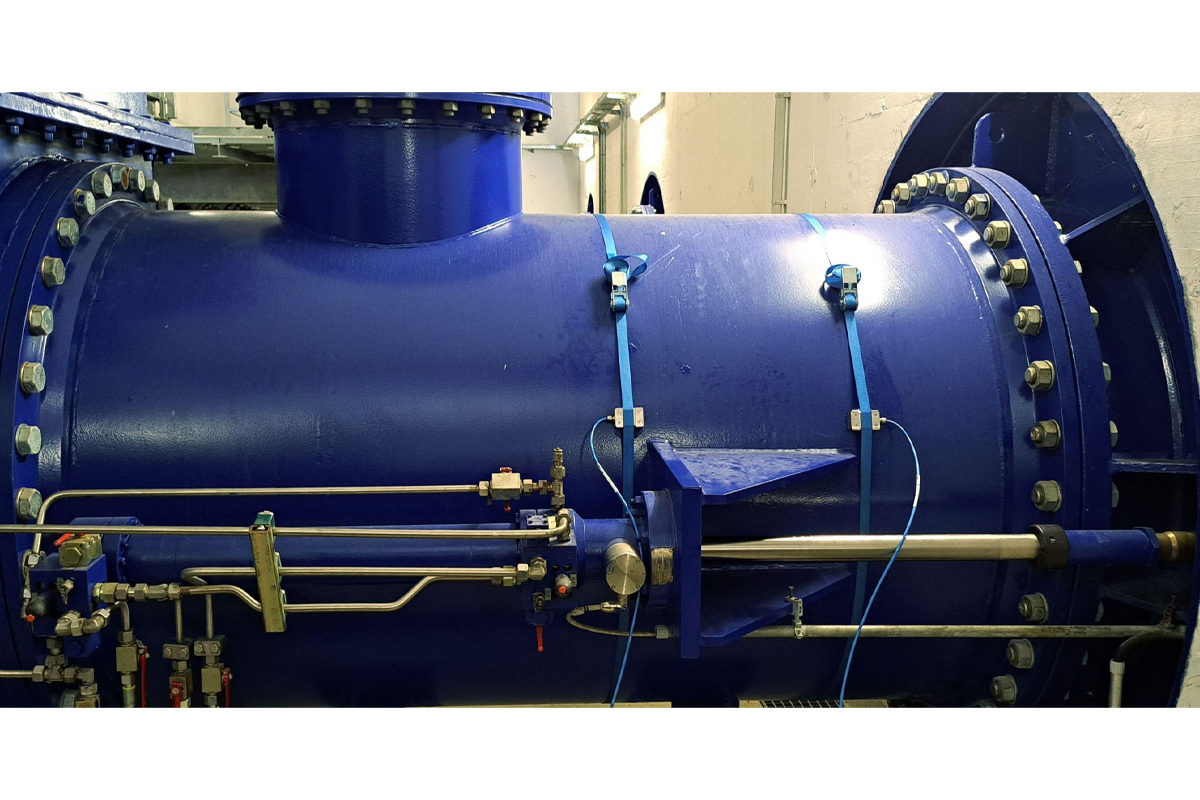

Hydropower plants, turbine efficiency monitoring
Pump monitoring and control

Main benefits

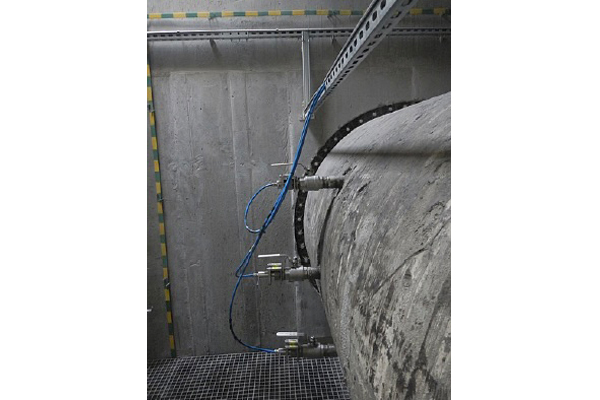

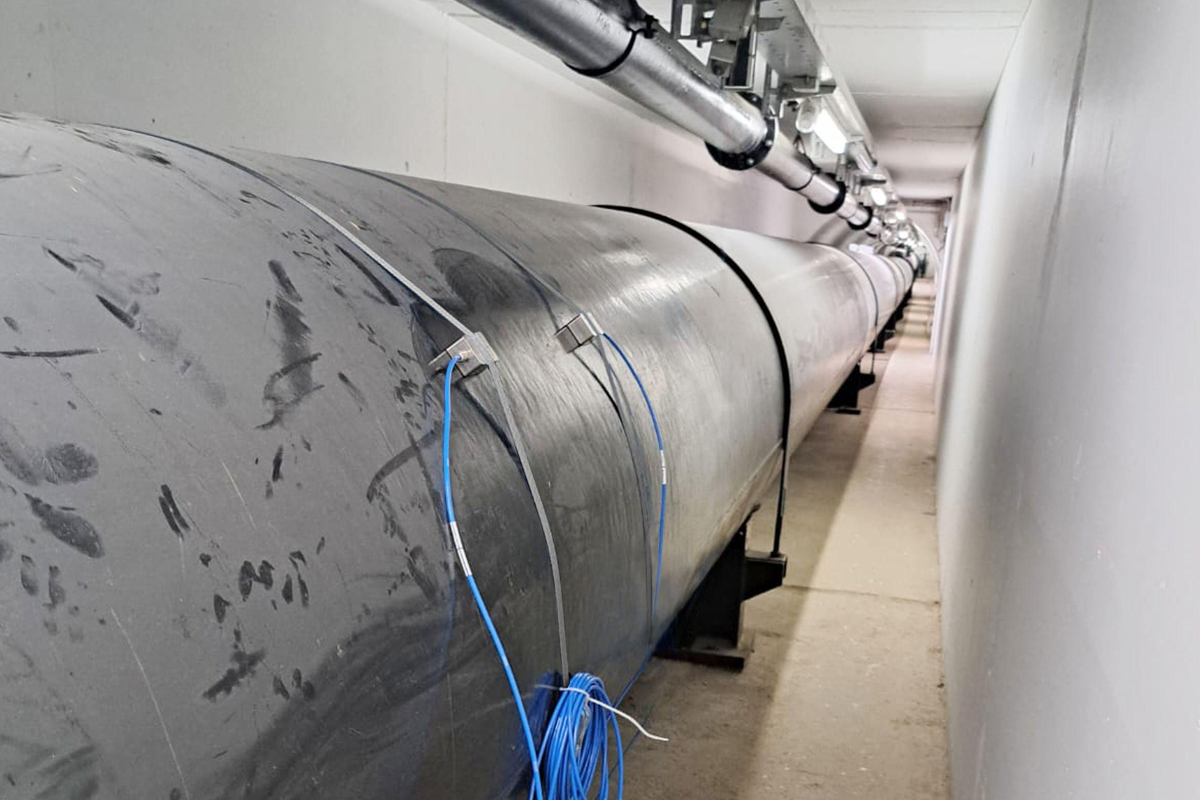

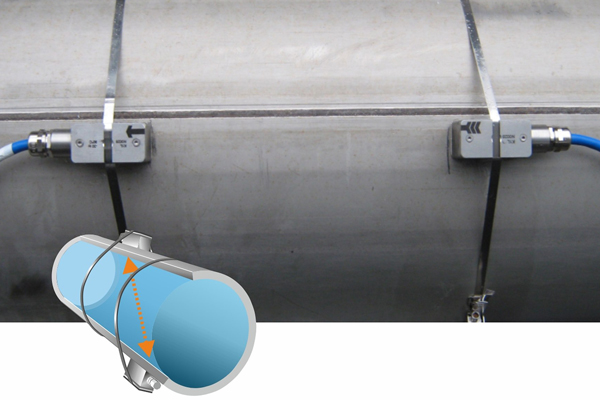

Easy installation, no need to interrupt the process, whether measurement is non-contact (clamp-on sensors) or in the medium (insertion pipe sensors)
Proven ultrasonic transit time difference technology

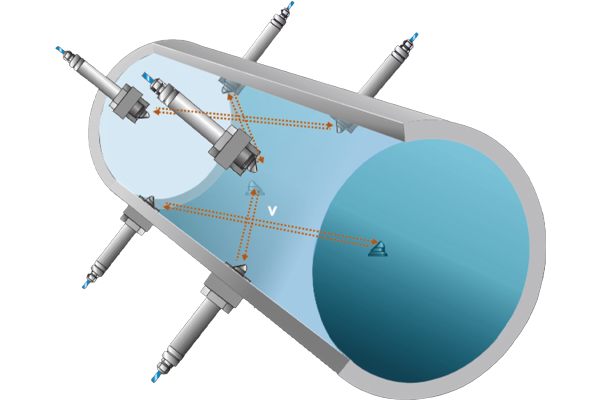

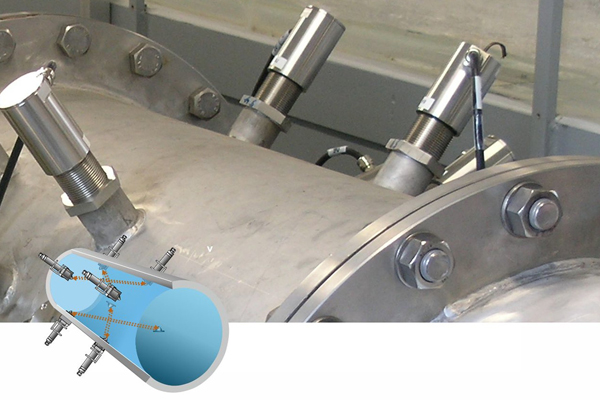

Single-path or multi-path measurement; up to 32 measurement paths (64 sensors) with extension modules on the same equipment

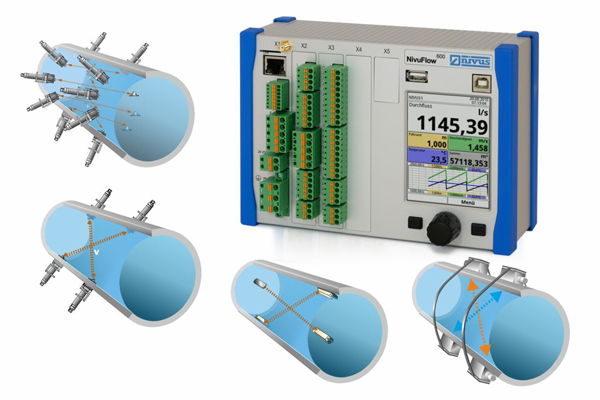

Variety of sensors (clamp-on non-contact sensors, insertion pipe sensors, hydrodynamic sensors)
Perfect zero-point stability and no sensor drift
Integrated diagnostic functions
Simple commissioning with menu-assisted sensor positioning
Intuitive, modern control concept
IP67 and IP68 waterproof field enclosures available
Can be used stand-alone or connected to control systems (PLCs, SCADA, etc.)
Integrated datalogger to prevent data loss
Remote operation possible, standalone or via Scadalliance and Nivus Cloud platforms (cellular telemetry option)
Low installation costs thanks to various mounting accessories available
Integrated temperature measurement

Specifications

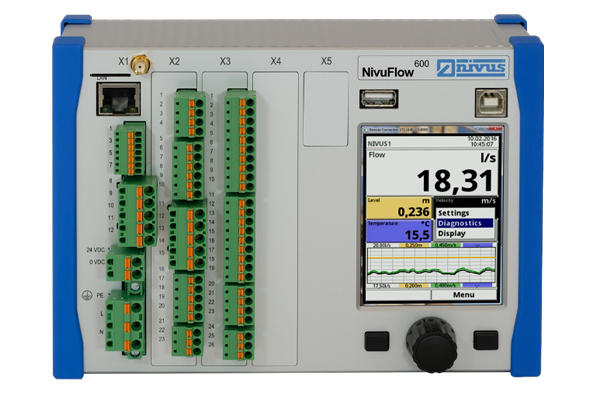

CONVERTER-TRANSMITTER

Power supply: 10 to 35 VDC
Weight: approx. 1150 g
Dimensions: L 195 mm x W 140 mm x D 88 mm
Storage temperature: -30 °C to +80 °C
Operating temperature: −20 °C to +70 °C
Max. humidity: 80%, non-condensing

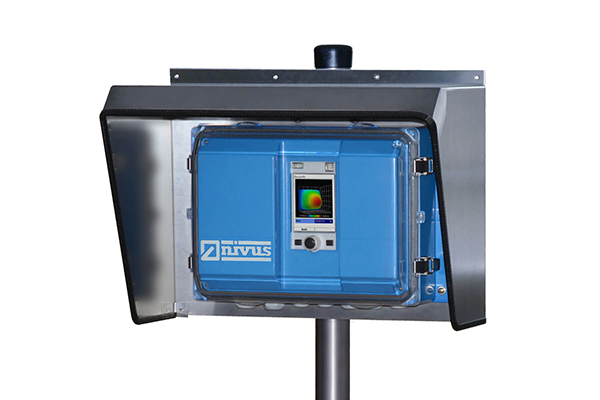

IP20 protection (control cabinet), IP67/IP68 (optional field enclosure)
Display: 240 x 320 pixels, 65536 colors
Control: Wheel, 2 function keys, menus in English, French, German, Spanish...
Connection: Plug with spring terminals
Inputs:
— 2 x 4-20 mA, 12-bit resolution
— 2 x digital inputs
Outputs:
— 2 x 0/4-20 mA, 12-bit resolution
— 2 x Relays
Data memory: Internal 1.0 GB, readout via USB stick
Communication:
— Modbus TCP
— Modbus RTU (via RS485 or RS232)
— Ethernet TCP/IP
Cellular telemetry (option)
Number of measurement points: up to 2 pipes
Number of paths/chords (sensor pairs): up to 32 with extension modules

SENSORS

Various models, frequencies, mounting types (NIS/NOS/TPS0)

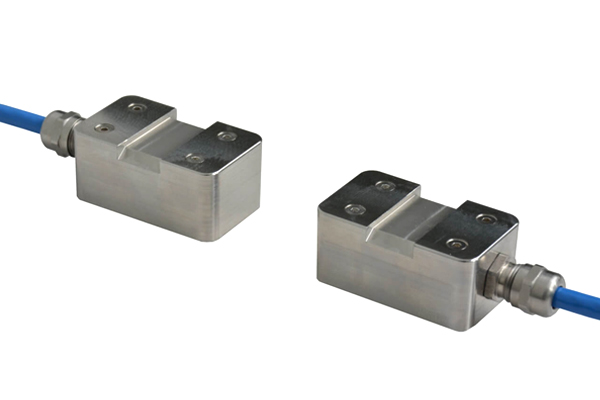

— Clamp-on sensors

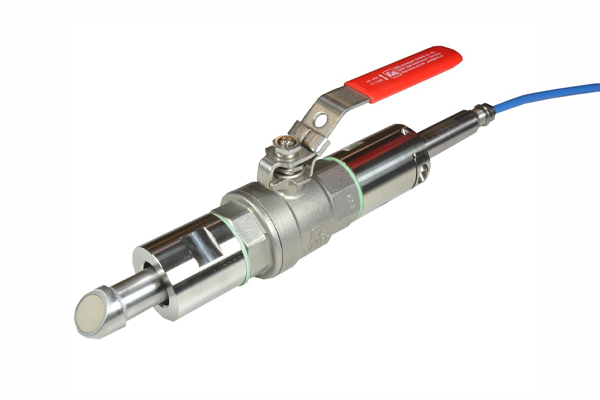

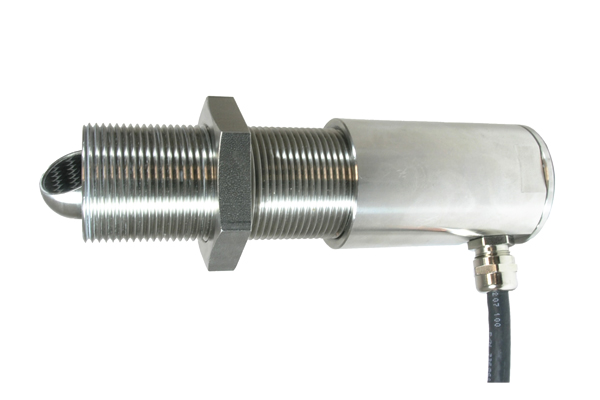

— Insertion pipe sensors

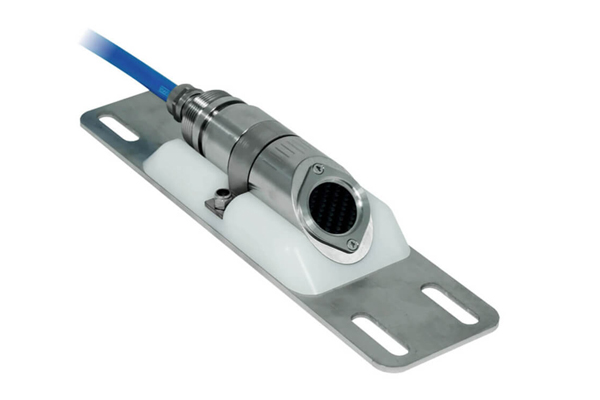

— Hydrodynamic/Wedge sensors
See details in the pdf below
